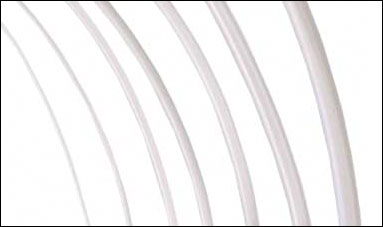

PTFE Tubing







PTFE tubing is chemically inert and suitable for lower pressure applications



PTFE Tubing- Solid Colour Coded





Size OD (Inches)
Size ID (MM)
Colour
Burst Press Bar
Part No- 1 Metre
Part No- 3 Metre
1/16"
0.25
Blue
70
J4011C-1
J4011C-3
1/16"
0.50
Orange
50
J4183C-1
J4183C-3
1/16"
0.75
Green
35
J4036C-1
J4036C-3
1/16"
0.25
Black
70
J6808-1
J6808-3
1/16"
0.50
Black
50
J6811-1
J6811-3







PTFE Tubing- Natural


Size OD (Inches)
Size ID (MM)
Burst Press Bar
Part No- 1 Metre
Part No- 3 Metre
1/16"
0.17
70
J6805-1
J6805-3
1/16"
0.25
80
J4011-1
J4011-3
1/16"
0.50
50
J4183-1
J4183-3
1/16"
0.75
35
J4036-1
J4036-3
1/16"
1.00
25
J6807-1
J6807-3
1/8"
1.59
35
J6800-1
J6800-3
1/8"
2.40
18
J4037-1
J4037-3
1.00mm
1.70
10
J6801-1
J6801-3
4.76mm
3.76
14
J4041-1
J4041-3
1/4"
4.75
18
J6810-1
J6810-3
4.00mm
3.00
18
J4039-1
J4039-3







PFA Tubing



PFA Tubing is the latest to our line of Fluoropolymers with excellent chemical stability and mechanical strength.

-Always use PFA instead of PTFE if gas permeability is the issue.



Size OD (Inches)
Size ID (MM)
Burst Press Bar
Part No- 1 Metre
Part No- 3 Metre
1/16"
0.50
105
J4004-1
J4004-3
1/16"
0.75
70
J4002-1
J4002-3
1/8"
1.59
70
J4003-1
J4003-3







FEP Tubing



FEP is Fluorinated Ethylene Polypropylene and is chemically inert to most HPLC solvents and is recommended for low pressure applications


- We do not recommend using FEP tubing above 80°C



Size OD (Inches)
Size ID (MM)
Burst Press Bar
Part No- 1 Metre
Part No- 3 Metre
1/16"
0.25
140
J6812-1
J6812-3
1/16"
0.50
105
J6802-1
J6802-3
1/16"
0.75
70
J6803-1
J6803-3
1/16"
1.00
56
J6806-1
J6806-3
1/8"
1.59
70
J6804-1
J6804-3
1/4"
4.35
35
J6809-1
J6809-3
