Model 1000 O2 Gas filters

Overview

High capacity oxygen removal for long term protection of capillary column stationary phases against oxidation at GC operating temperatures. The Model 1000 is intended for use with non-oxidizing gases such as He, Ar, N2, H2 or CH4, containing less than 0.1% oxygen.

Product Description

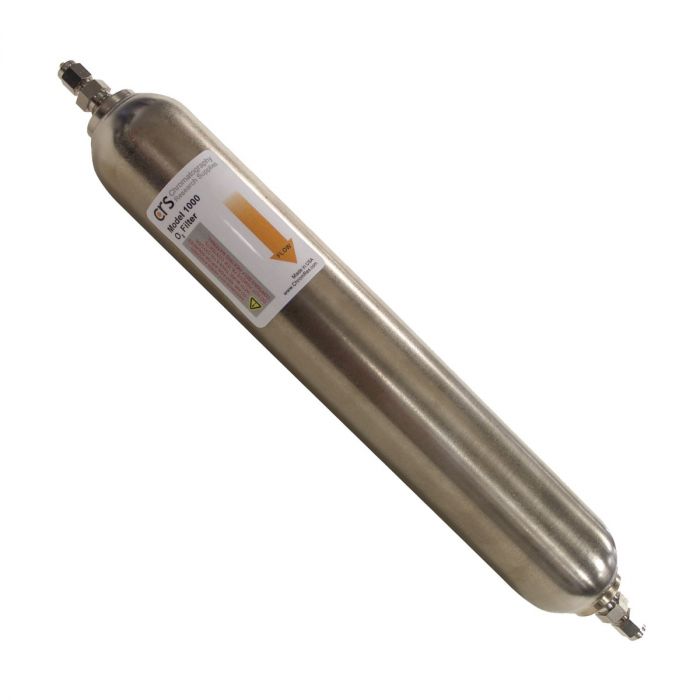

High capacity oxygen purifier for long term protection of capillary column stationary phases against oxidation at GC operating temperatures. It is also recommended for packed column carrier gases and is effective for removing sulfur compounds, such as hydrogen sulfide and mercaptans. The Model 1000 is intended for use with non-oxidizing gases such as He, Ar, N2, H2 or CH4, containing less than 0.1% oxygen. The Model 1000 Oxygen Purifier is a high-pressure metal cylinder filled with 500 cc of active oxygen adsorbent. The adsorbent binds covalently with oxygen; no gas is generated from this reaction. It is delivered in the active state, filled with high-purity helium. It is ready for use, but we recommend that the purifier be purged with the gas you will be using.

500 cc Filters

Compression Fittings

Item Number

1/8” Brass Fittings

202200-B

1/4” Brass Fittings

202202-B

1/8" Stainless Fittings

202200-SS

1/4" Stainless Fittings

202202-SS
