Sampling Cannulae & Stoppers

Sampling Cannulae are used to take samples from the dissolution test. Choice of cannula is important as the sampling method must not adversely affect the accuracy of the dissolution test and cause erroneous results.

Key Considerations:

Sampling Position - this is important as there can be a concentration profile between the bottom of the vessel and the stirring element.
Cannula Length - cannulae vary in length from 4.75” (120mm) to 15” (380mm). These extended lengths are normally used for “through the head sampling” whereby the cannula passes through the drive head of the dissolution bath.
Cannula Material - The cannulae are made from either stainless steel or PEEK so that they do not adsorb or interfere with the active ingredient
Stoppers - cannulae can be used with stoppers during manual sampling to ensure that the sample is always taken from the same depth.

Description	Image	Product Code
4.75” (120mm) Bent SS Sampling Cannula with Luer Adapter for 900ml Sampling 0.083” (2.1mm) Diameter VanKel Compatible		CAN475-01
15” (380mm) Bent PEEK Sampling Cannula with Luer Adapter Through Head Mount 1/8” (3.2mm) Diameter Hanson Research / Erweka Compatible		CAN015-PH
4.75” (120mm) Bent PEEK Sampling Cannula with Luer Adapter for 900ml Sampling 1/8” (3.2mm) Diameter Hanson Research / Erweka Compatible		CAN475-PH
7.75” (195mm) Bent PEEK Sampling Cannula with Luer Adapter for 500ml Sampling 1/8” (3.2mm) Diameter Hanson Research / Erweka Compatible		CAN775-PH
15” (380mm) Straight PEEK Sampling Cannula with Luer Adapter 1/8” (3.2mm) Diameter Hanson Research Compatible		CANS15-PH
15” (380mm) Bent SS Sampling Cannula with Luer Adapter Through Head Mount 1/8” (3.2mm) Diameter - Hanson Research / Erweka Compatible		CAN015-SH
4.75” (120mm) Bent SS Sampling Cannula with Luer Adapter for 900ml Sampling 1/8” (3.2mm) Diameter Hanson Research / Erweka Compatible		CAN475-SH
7.75” (195mm) Bent SS Sampling Cannula with Luer Adapter for 500ml Sampling 1/8” (3.2mm) Diameter Hanson Research / Erweka Compatible		CAN775-SH
4.75” (120mm) Bent SS Sampling Cannula with Luer Adapter for 900ml Sampling Pharmatest Compatible		CAN475-SP
500mL Resident Sampling Probe, Solid Housing		CAN500-DSH
900mL Resident Sampling Probe, Solid Housing		CAN900-DSH
15” (380mm) Bent SS Sampling Cannula with Luer Adapter 1/8” (3.2mm) Diameter Hanson Research Compatible		CAN015-HR
7.75” (195mm) Bent SS Sampling Cannula with Luer Adapter and Permenent Tip Hanson Research Compatible		CAN775-HR
4.75” (120mm) Bent SS Sampling Cannula with Luer Adapter and Permenent Tip Hanson Research Compatible		CAN475-HR
7.75” (195mm) Bent SS Sampling Cannula with Luer Adapter for 500ml Sampling 0.083” (2.1mm) Diameter VanKel Compatible		CAN775-01
15” (380mm) Bent SS Sampling Cannula with Luer Adapter Through Head Mount 1/8” (3.2mm) Diameter VanKel Compatible		CA8015-VK
4.75” (120mm) Bent SS Sampling Cannula with Luer Adapter for 900ml Sampling 1/8” (3.2mm) Diameter VanKel Compatible		CA8475-VK
7.75” (195mm) Bent SS Sampling Cannula with Luer Adapter for 500ml Sampling 1/8” (3.2mm) Diameter VanKel Compatible		CA8775-VK
4.75” (120mm) Bent PEEK Sampling Cannula with Luer Adapter for 900ml Sampling 1/8” (3.2mm) Diameter VanKel Compatible		CA8475-PV
7.75” (195mm) Bent PEEK Sampling Cannula with Luer Adapter for 500ml Sampling 1/8” (3.2mm) Diameter VanKel Compatible		CA8775-PV
15” (380mm) Bent PEEK Sampling Cannula with Luer Adapter Through Head Mount 1/8” (3.2mm) Diameter VanKel Compatible		CA8015-PV
6.5” (165mm) Autosampling Cannula VanKel Compatible		CAN500-60
4.5” (115mm) Autosampling Cannula VanKel Compatible		CAN900-45
2.5” (65mm) Autosampling Return Cannula VanKel Compatible		CANRET-25
13” (330mm) Bent SS Sampling Cannula Including Stopper and Sleeve for 900ml Sampling Sotax Compatible		CAN013-ST-9
13” (330mm) Bent SS Sampling Cannula Including Stopper and Sleeve for 500ml Sampling Sotax Compatible		CAN013-ST-5
13” (330mm) Bent SS Sampling Cannula with Luer Adapter Through Head Mount Sotax Compatible		CAN013-ST
2000ml Standard Sampling Probe - Distek		CAN02K-DK
900ml Sampling Probe 1/8 (3.2mm) PEEK		CAN9PK-DK8
Inline Filter Housing Assembly for Distek Style Filters		FILASY-DK

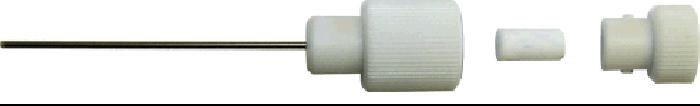

High capacity 1000ml sampling cannula for all dissolution baths		CAN01K-DV

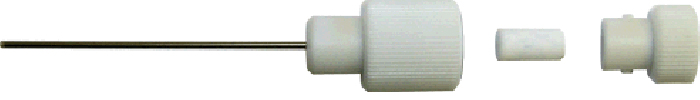

High capacity 900ml sampling cannula for all dissolution baths		CAN900-DV
High capacity 500ml sampling cannula for all dissolution baths		CAN500-DV
Combined Sample/Return Cannula without Filter Housing		PRBNSR-ST
Combined Sample/Return Cannula with Filter Housing		PRBFSR-ST
Variable Length Sampling Kit		CANCAL-KT-DK
Adjustable Length Cannula Hanson Research Compatible		CAN500-HR
500ml Sampling Probe		CAN500-DK
900ml Sampling Probe		CAN900-DK
1000ml Sampling Probe		CAN01K-DK
Return Probe		CANRET-DK
Combined Sample/Return Cannula without Filter Housing		PRBNSR-DK
Adjustable Cannula Stopper Erweka Compatible		CANSTP-EW
Adjustable Cannula Stopper Caleva Compatible		CANSTP-CA
Adjustable Cannula Stopper Sotax Compatible		CANSTP-ST
Adjustable Cannula Stopper Distek Compatible		CANSTP-DK
Cannula Stopper Distek Compatible		CA8STP-DK
Adjustable Cannula Stopper Hanson Research Compatible		CANSTP-HR
Cannula Stopper for VanKel 'V' Series Baths		CAVSTP-VK
Adjustable Cannula Stopper 1/8” (3.2mm) Hole VanKel Compatible		CA8STP-VK
Adjustable Cannula Stopper 0.083” (2.1mm) Hole VanKel Compatible		CANSTP-VK
500ml Cannula Extension Kit VanKel Compatible		PROBEX-VK
Adjustable Cannula Stopper Pharmatest Compatible		CANSTP-PT
