SGE Capillary Columns

Polyethylene Glycol (PEG)





SolGel Wax™- Polyethylene Glycol (PEG)
ID (mm)	Length (m)	Film Thickness (µm)	Temperature Limits (°C)	Part No.
0.25	30	0.25	30 to 280/300	054796
	60	0.25	30 to 280/300	054791
	30	1.00	30 to 280/300	054787
0.32	30	0.25	30 to 280/300	054788
	30	0.50	30 to 280/300	054797
	60	0.25	30 to 280/300	054789
	60	0.50	30 to 280/300	054792
0.53	30	0.50	30 to 280/300	054786
	30	1.00	30 to 280/300	054785

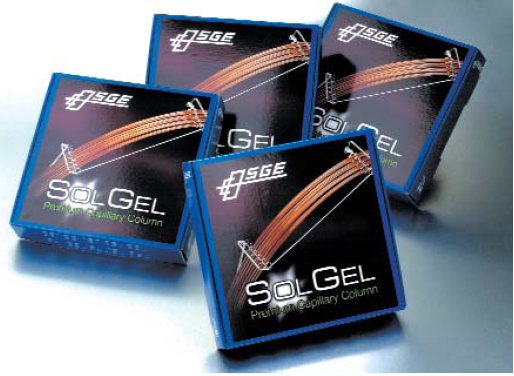

SolGel WAX Capillary Columns



* Next generation column technology

* World's highest temperature WAX column (300°C)

* Low bleed and inert

* Polar phase

* Cross linked for stability and washing

* Suitable upgrade from DB-WAX, HP-20M, SUPELCOWAX 10, CP-WAX 52CB, SUPEROX II, CB-WAX, Stabilwax, PE-CW, CC-WAX, 007-CW, Carbowax, HP-Innowax, Rtx®-WAX, PE-WAX, RH-WAX & ZB-WAX, BP20 (WAX)







Back to top

BP20 (WAX)- Polyethylene Glycol (PEG)





ID (mm)	Length (m)	Film Thickness (µm)	Temperature Limits (°C)	Part No.
0.10	10	0.10	20 to 260/280	054405
0.22	12	0.25	20 to 260/280	054420
	25	0.25	20 to 260/280	054421
	30	0.25	20 to 260/280	054424
	50	0.25	20 to 260/280	054422
	60	0.25	20 to 260/280	054425
0.25	15	0.25	20 to 260/280	054426
	30	0.25	20 to 260/280	054427
	30	0.50	20 to 260/280	054415
	30	1.00	30 to 240/260	054439
	60	0.25	20 to 260/280	054428
	60	0.50	20 to 260/280	054458
0.32	15	0.25	20 to 260/280	054432
	25	0.25	20 to 260/280	054430
	25	0.50	20 to 260/280	054436
	25	1.00	30 to 240/260	054442
	30	0.25	20 to 260/280	054433
	30	0.50	20 to 260/280	054438
	30	1.00	30 to 240/260	054444
	50	0.25	20 to 260/280	054431
	50	0.50	20 to 260/280	054437
	50	1.00	30 to 240/260	054434
	60	0.25	20 to 260/280	054434
	60	0.50	20 to 260/280	054457
	60	1.00	30 to 240/260	054445
0.53	12	1.00	30 to 240/260	054447
	12	2.00	30 to 240/260	054455
	15	0.50	20 to 260/280	054961
	15	1.00	30 to 240/260	054450
	25	1.00	30 to 240/260	054448
	25	2.00	30 to 240/260	054456
	30	0.50	20 to 260/280	054440
	30	1.00	30 to 240/260	054451
	60	0.50	20 to 260/280	054963
	60	1.00	30 to 240/260	0544515





BP20 (WAX) Capillary Columns



* Industry standard WAX column

* Ideal for alcohol, ester and aldehyde analysis

* Polar phase

* Cross-linked for stability and washing

* Suitable upgrade from DB-WAX, HP-20M, SUPELCOWAX 10, CP-WAX 52CB, SUPEROX II, CB-WAX, Stabilwax, PE-CW, CC-WAX, 007-CW, Carbowax, HP-Innowax, Rtx®-WAX, PE-WAX, RH-WAX & ZB-WAX
