Heliflex® AT™-1ht



Shorten Your Analysis Time with High-Temperature/Low-Bleed Columns


• Faster analysis time for high boiling compounds
• Better peak detection at lower concentrations
• Individually bleed tested at 380ºC
• Similar to 007-1, CP-Sil 5CB, DB-1, DB-1ht, HP-1, HP-101, OVTM-1, RSL-150, RSL-160, Rtx®-1, SE-30™, SPBTM-1, SPBTM-Sulfur, ULTRA-1, SP-2100, BP-1, DC-200, PE-1, ZB-1



Heliflex® AT™-1ht Specifications
Phase: 100% Dimethylpolysiloxane
Polarity: Non-polar
Max. Temp.: 380/400°C
USP Designation: G1, G2, G38
Ideal For: High Boiling Compounds Waxes, Crude Oils, and
Trigylcerides

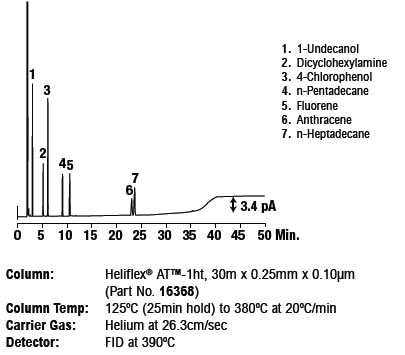

QC Test Chromatogram – Bleed Profile

Chrom 2634



Heliflex (R) AT (TM) -1ht







Length
i.d.
Film
Temp. Limits
min.–max.
Part Number
15m
0.25mm
0.1μm
-60–380/400°C
16367
30m
0.25mm
0.1μm
-60–380/400°C
16368
60M
0.25mm
0.1μm
-60–380/400°C
16369
