Micro Valves for LC and GC





- 200 psi, 1.50 mm bore

- Compact 1" design

- Convenient panel mount (8 mm hole required)

- Variety of configurations









Simplify your liquid or gas handling application with a VICI Precision Sampling Micro valve. The unique design of the fitting detail allows a leak-free seal with no potential for rotor damage from overtightening.

Internal parts are PEEK and PTFE.



Includes fittings for 1/8" OD tubing:

PPS flangeless hex-head nuts

CTFE collapsible ferrules

Color-Sleeve adapters

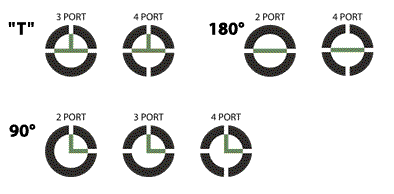

Flowpath configurations















Spare Parts









Specifications

For 1/16" and 1/8" OD tubing, flangeless connections

Materials:

Wetted parts - PEEK, PTFE

Body - PEEK

Nuts - PPS

Ferrules - CTFE (1/8") or PEEK (1/16")

1/4-28 threads

1.50 mm bore

Body size:

5 ports 25.0 mm diameter 17.1 mm thick

9 ports 25.0 mm diameter 28.6 mm thick



Pressure rating:

• 200 psi gas

Tested with helium using 1/16" OD x 0.84 mm ID PTFE tubing with PEEK collapsible ferrules

• 500 psi liquid

Tested with isopropanol using 1/8" OD x 0.75 mm ID PTFE tubing with CTFE collapsible ferrules
