SGE Ferrules for Capillary Columns- Shimadzu



•15% Graphite / 85% Vespel Ferrules
•100% Graphite Ferrules
•SilTite™ Metal Ferrules
•Replacement SilTite™ Metal Ferrules
•Replacement SilTite™ Nuts

15% Graphite / 85% Vespel Ferrules- For QP5000-I GC-MS System





Column ID	Ferrule ID	Pack Size	Part No
0.1- 0.25mm	0.4mm	10	SG0726563
0.32mm	0.5mm	10	SG0726564









15% Graphite / 85% Vespel Ferrules- For QP5000-II & QP5050 GC-MS System



Column ID	Ferrule ID	Pack Size	Part No
0.1- 0.25mm	0.4mm	10	SG0726561
0.32mm	0.5mm	10	SG0726562









15% Graphite / 85% Vespel Ferrules- For 2010 Injector & GC-MS Connection





Column ID	Ferrule ID	Pack Size	Part No
0.1- 0.25mm	0.4mm	10	SG072663
0.32mm	0.5mm	10	SG072654
0.53mm	0.8mm	10	SG072655



Back to top

100% Graphite Ferrules- Injectors & Detectors at atmospheric pressure e.g. FID (Not for GC-MS)





Column ID	Ferrule ID	Pack Size	Part No
0.1 - 0.32mm	0.5mm	10	SG0726080
0.45 - 0.53mm	0.8mm	10	SG0726082
5mm OD Packed Columns	0.5mm	10	SG0726001









100% Graphite Ferrules- For 2010 Injector





Column ID	Ferrule ID	Pack Size	Part No
0.1 - 0.32mm	0.5mm	10	SG072635
0.45 - 0.53mm	0.8mm	10	SG072636



Back to top

SilTite™ Metal Ferrules- For GC-MS Interface Connection- Direct Interface (Starter Kit)

(SilTite™ information)



Column ID	Ferrule ID	Pack Size	Part No
0.1- 0.25mm	0.4mm	10*	SG073204









SilTite™ Metal Ferrules- For GC-MS Interface Connection- Jet seperator & 2010 (Starter Kit)

(SilTite™ information)



Column ID	Ferrule ID	Pack Size	Part No
0.1- 0.25mm	0.4mm	10*	SG073200
0.32mm	0.5mm	10*	SG073201
0.53mm	0.8mm	10*	SG073202









SilTite™ Metal Ferrules- For all Injectors, Jet Seperator (Starter Kit), except 2010

(SilTite™ information)





Column ID	Ferrule ID	Pack Size	Part No
0.1- 0.25mm	0.4mm	10*	SG073350
0.32mm	0.5mm	10*	SG073351
0.53mm	0.8mm	10*	SG073352



Back to top



Replacement SilTite™ Metal Ferrules- For GC-MS Interface connections



(SilTite™ information)



Column ID	Ferrule ID	Pack Size	Part No
0.1- 0.25mm	0.4mm	10	SG073220
0.32mm	0.5mm	10	SG073221
0.53mm	0.8mm	10	SG073222









Replacement SilTite™ Metal Ferrules- For GC-MS Interface connections- Direct Interface (For Part No. G073204)

(SilTite™ information)





Column ID	Ferrule ID	Pack Size	Part No
0.1- 0.25mm	0.4mm	10	SG073227



Back to top

Replacement SilTite™ Nuts- For 2010 GC-MS System

(SilTite™ information)

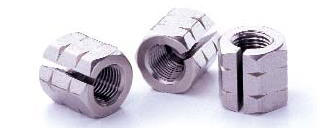

SilTite™ nuts, with the distinctive two notches, specific to Shimadzu fittings.



Pack Size	Part No.
5	SG073224



* Includes 10 ferrules, 2 SilTite™ nuts

Back to top

Why Choose SilTite™ Ferrules?



• No more leaks

• No need to re-tighten nut after installation and thermal cycling

• Have the same thermal expansion coefficient as SilTite nuts thus giving a highly reliable seal

• Reusable nut



How to use SilTite™ ferrules?



• Only use the special SilTite nut with a SilTite ferrule

• For Agilent Technologies inlet connections, only use with SilTite inlet base seal and SilTite nut
